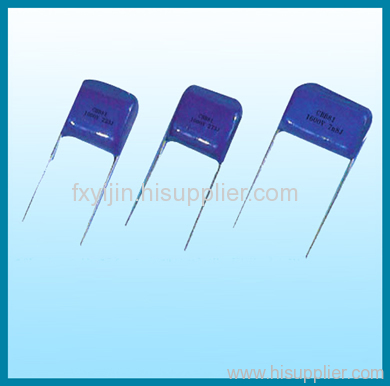

Type:CBB81
CBB81
High-Voltage Metallized Polypropylene Film Capacitor
FEATURES :
,, (UL94/v-0)
Low loss and small inherent temperature rise. Flame retardant epoxy resin coating (UL94/v-0)
APPLICATIONS :

Suitable for high pulsing and high current-loading circuit.
SPECIFICATIONS:
Climatic Category :40/85/21
Rated Voctage:1000V/2000V
Capacitance Range:0.001~0.027μF
Capacitance Tolerance: ±3%(H) ±5%(J) ±10%(K)
Dissipation Factor:≤0.10%(1KHZ 20℃)
≤0.20%(10KHZ 20℃)
Voltage Proof:1.6UR
Insulation Resistance:≥30000MΩ (20℃ 1min)
